WON-DOOR FIREGUARD AFG DOOR TYPES
The development of the accordion type, horizontal sliding fire and security door – invented by Won-Door Corporation – has had a profound influence on the model code requirements that regulate their use. They may replace traditional solutions in virtually any means of egress or access control application. When security matters, Won-Door Fireguard AFG accordion doors can restrict access and line of sight to corridors and building spaces in seconds.
All Won-Door Fireguard AFG accordion access control doors are
- For security applications larger than 40′ W x 15′ T please contact us for additional details and capabilities.
- For curved and bi-parting configurations as well as any air pressure differential in excess of .1WC please see FireGuard FG.

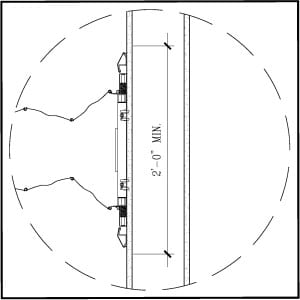

FLAT LEAD POST
- STRAIGHT DOORS UP TO 40′ W BY 12′ T
- FOR SINGLE PARTING DOORS ONLY
- INTEGRATED POCKET COVER DOOR INCLUDED
- 24″ RATED SURACE REQUIRED ON STRIKE WALL PERPENDICULAR TO DOOR

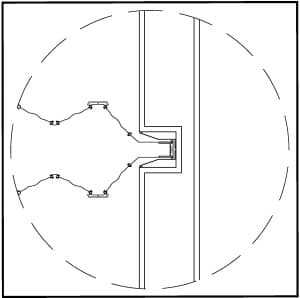

NARROW LEAD POST
- STRAIGHT DOORS UP TO 40′ W BY 15′ T
- FOR SINGLE PARTING DOORS ONLY
- POCKET COVER DOOR PROVIDED BY OTHERS
- FOR OPENINGS GREATER THAN 40′ W AND 15′ T PLEASE SEE FIREGUARD FG
WON-DOOR FIREGUARD FG DOOR TYPES
The development of the accordion-type, horizontal sliding fire and security door – invented by Won-Door Corporation – has had a profound influence on the model code requirements that regulate their use. They may replace traditional solutions in virtually any means of egress or access control application. The FireGuard FG door is offered in both a straight and curved configuration.
All Won-Door Fireguard FG accordion access control doors are
Looking for a flat lead post or have a straight single parting applications less than 40′-0″ in width and 15′-0″ in height? We recommend using our FireGuard Slim or FireGuard AFG door for the best possible stack depth and more standard features included than ever before. Check it out!

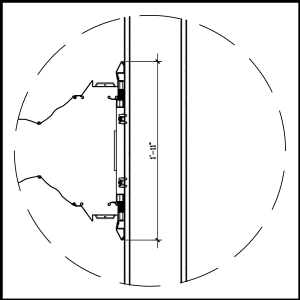

SLIM
- COST-EFFECTIVE OPTION WITH A MINIMAL STACK (14″)
- UL LISTED WITH FLAT LEAD POST
- AVAILABLE WITH CLEAR OPENING WIDTHS UP TO 9′ AND HEIGHTS OF 7′ AND 8′ TALL TO REPLACE TRADITIONAL SWING DOOR APPLICATIONS
- SINGLE-PARTING DOOR CONFIGURATION ONLY
- FOR ADDITIONAL FLAT LEAD POST CONFIGURATIONS, SEE WON-DOOR FIREGUARD AFG
STRAIGHT
- U.L. LISTED FOR HEIGHTS UP TO 30′ AND UNLIMITED WIDTHS.
- CUSTOM HEIGHTS AVAILABLE
- POCKET COVER DOOR PROVIDED BY OTHERS
- SINGLE AND BI-PARTING CONFIGURATIONS AVAILABLE
- FOR OPENINGS > 700 SQ. FT. PLEASE CONTACT US

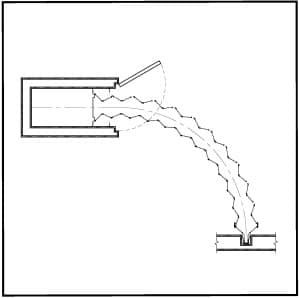

CURVED
- STANDARD RADII ARE 5′-0″ & 10′-0″
- CUSTOM RADII > 5′-0″ AVAILABLE
- U.L. LISTED FOR HEIGHTS UP TO 28′ AND UNLIMITED WIDTHS
- CUSTOM HEIGHTS AVAILABLE
- POCKET COVER DOOR PROVIDED BY OTHERS
- SINGLE AND BI-PARTING CONFIGURATIONS AVAILABLE
- FOR OPENINGS > 700 SQ. FT. PLEASE CONTACT US
